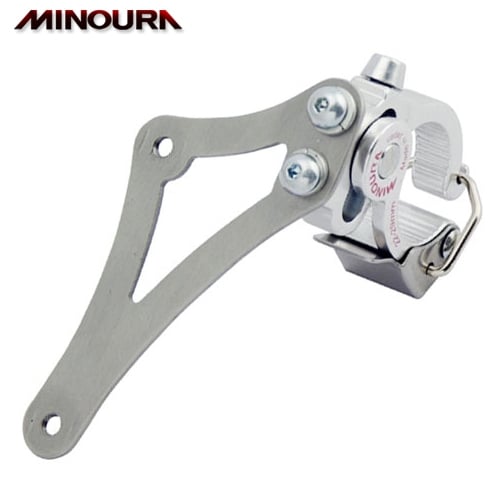

Minoura BH-100C bicycle handlebar water bottle cage holder

Purpose of off-setting
We usually place the water bottle cage(s) in the bike frame, and we install a holder on the handlebar when we need extra one. Handlebar is a good location for easier approach during ride.
The fully filled bottle weighs over 500 grams and if it's off from the bike's center, the weight balance will get worse and it will disturb your handling such as different feel on cornering between rightward and leftward.
We rely on visuality when we ride straight. If something is not positioned symmetrical, we often lose perfect balance on feeling. So it's crucial to set everything symmetric for better, easier and safe ride.

Any standard holder cannot place the bottle cage in the exact center of bike.
Our BH-60 is set beyond the stem to be placed in the center, but unfortunately its U-shape bolt fits the normal 22mm (7/8) handlebar only and it's not compatible with oversized bar.
BH-100C solves this problem (C means Center).

How To Use BH-100C
BH-100C sets the bottle cage 35mm off from the clamp position. It means clamping just next to the stem, the bottle cage will come to the center.
The bracket is made of rust-proof stainless steel and switchable to set either right or left side. You can install BH-100C in the opposite side of your bike computer.

By adding one more bracket, you can mount two bottle cages with just one clamp.

Space-Mount Clamp
BH-100C adopts our latest Space-Mount clamping device.
This system has a special micro adjustment for opening size. S-version fits the dimeter between 22 - 29mm (7/8 - 1-1/8), and M-version fits 28 - 35mm (1-1/8 - 1-3/8).
Installation and removal can be done in just one lever operation. You can install quickly only when necessary, and can remove quickly when you park your bike.


BH-100C-S Fits the diameter between 22 - 29mm Red logo printing color For normal handlebar
BH-100C-M Fits the diameter between 28 - 35mm  Black logo printing color  For oversized handlebar

BH-100C-S (smaller clamp version)
Clamp Opening Size 22 - 29mm (7/8 - 1-1/8)
Logo Color Red
Material Alloy / Stainless steel
Net Weight 84 grams

BH-100C-M (larger clamp version)
Clamp Opening Size 28 - 35mm (1-1/8 - 1-3/8)
Logo Color Black
Material Alloy / Stainless steel
Net Weight 85 grams
